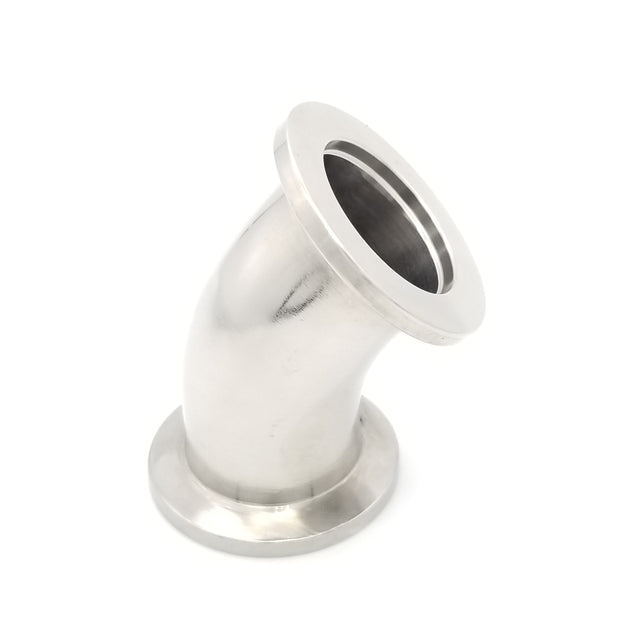

Elbow, 45 degree, KF25 flange, Economy grade

Product Description
$22.80
Maximum quantity available reached.

Description

  • Economy grade KF25 Elbow
  • Made of stainless steel 304
  • Good for general vacuum purpose

Background info

  • Elbow 45 Degrees KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel
  • These KF-25 45 degree elbow vacuum fittings follow ISO-KF standards and have a flange size of NW-25. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

Specification
KF-25 Elbow 45 Degrees
ISO-KF Flange Size: NW-25
Common Dimensions: A =

Sku: VAC-ELW-KF25-45
