3/8" Female BSP R series x KF16 flange stainless steel vacuum adapter

Product Description
$15.00
Maximum quantity available reached.

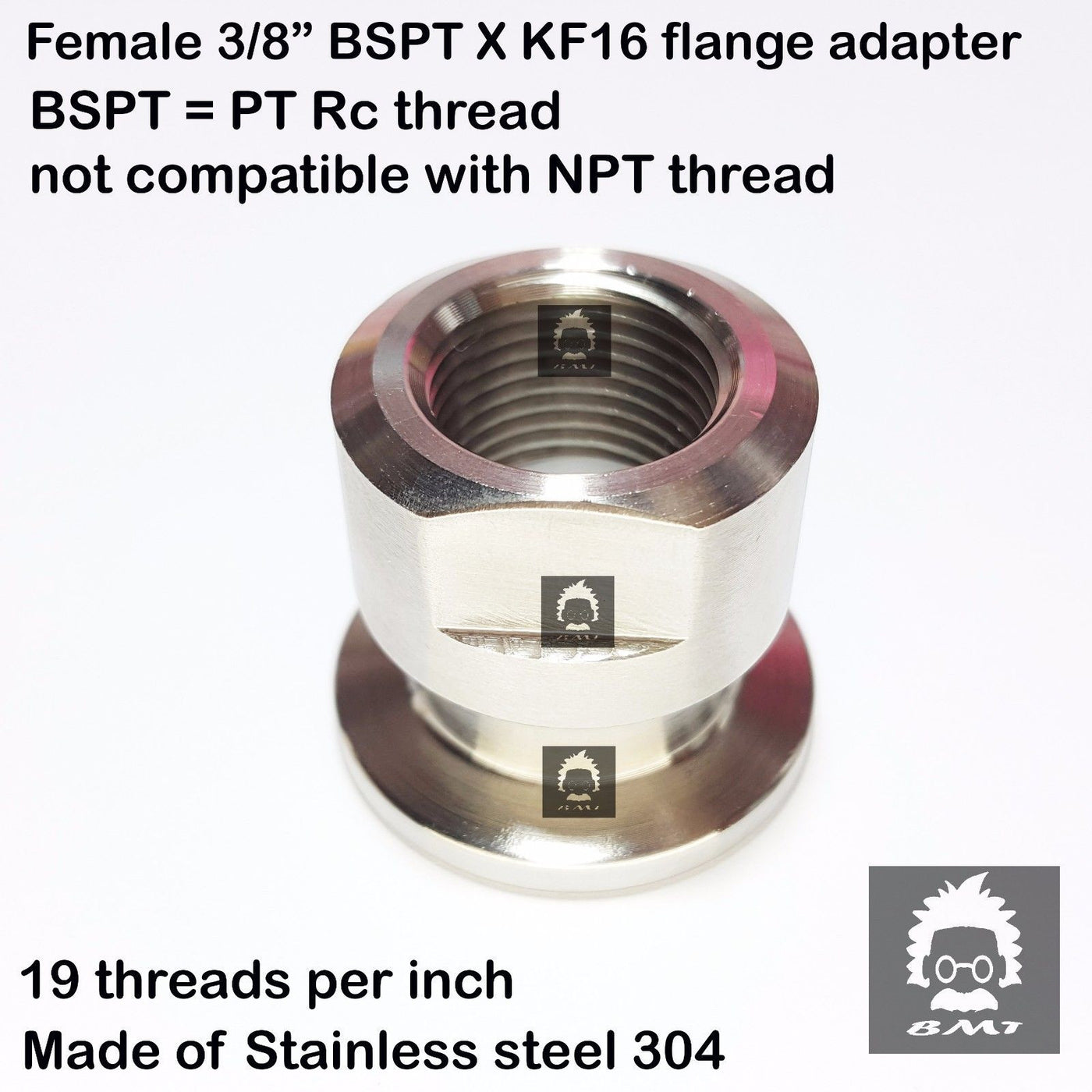

Adapter KF-16 to 3/8 BSPT/PT/Rc-Female, Flange Size ISO-KF NW-16, Stainless Steel
These adapters are KF-16 to 3/8 in. BSPT female pipe thread. They are commonly used to make connections between ISO-KF and 3/8 inch BSPT-Male pipe. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

Specification:

Adapter KF-16 to 3/8 in. NPT-F Pipe, Stainless Steel
Flange Size: ISO-KF NW-16
Pipe Thread: 3/8 in. NPT-Female
End to End length 1.06" or 27 mm
Sku:
