3/8" Male BSP tapered R series X KF16 flange stainless steel vacuum adapter

Product Description
$15.00
Maximum quantity available reached.
  • Brand New items
  • Made of Stainless Steel 304
  • 19 threads per inches
  • Pitch angle 55 degrees with round peak & valley
  • BSPT thread is also called PT Rc thread
  • Commonly used thread in China, UK, Australia & Japan
  • Not compatible with the NPT thread
  • Never mate NPT with BSPT

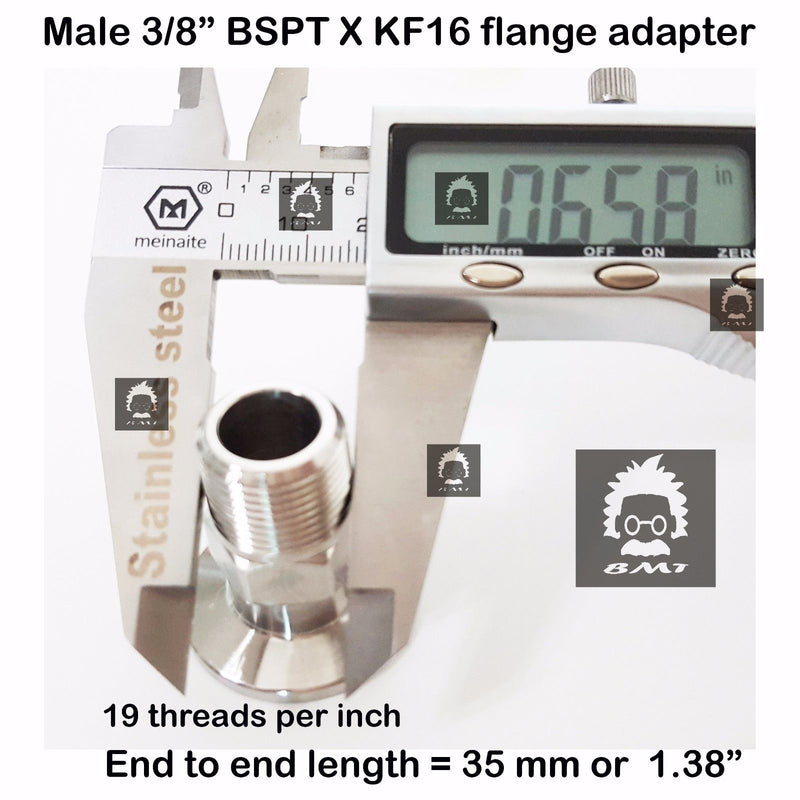

Adapter KF-16 to 3/8"  Male BSPT adapter, Flange Size ISO-KF NW-16, Stainless Steel

These adapters are KF-16 to 3/8" BSPT Male pipe thread. They are commonly used to make connections between ISO-KF and BSPT-Female pipe. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.
Sku: MBSP-R-KF16-3
