Cross, 4 x KF25 flange - Superior grade

Product Description
$33.00
Maximum quantity available reached.
  • Brand new
  • A grade KF-25 flange 4-ways Cross adapter
  • It follows ISO-KF standards and all flange size of NW-25.
  • Matte surface finish
  • Superior argon welding
  • Made of Stainless steel 304
  • KF flange is finely polished / No scratch for high vacuum integrity.

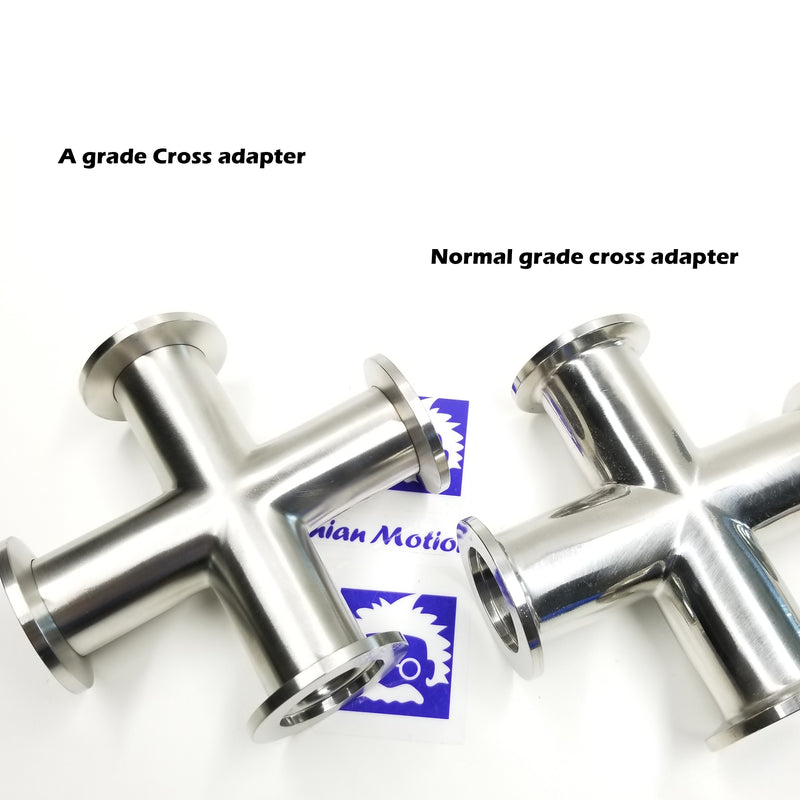

  • You can feel quality difference between regular china cross and my high quality cross.



More Info:

They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively.



KF-25 4-Ways Cross
ISO-KF Flange Size: NW-25, KF-25
Common Dimensions: B=1.97" (50mm), A=3.94" (100mm)

Sku: CROSS-KF25-Agrade
