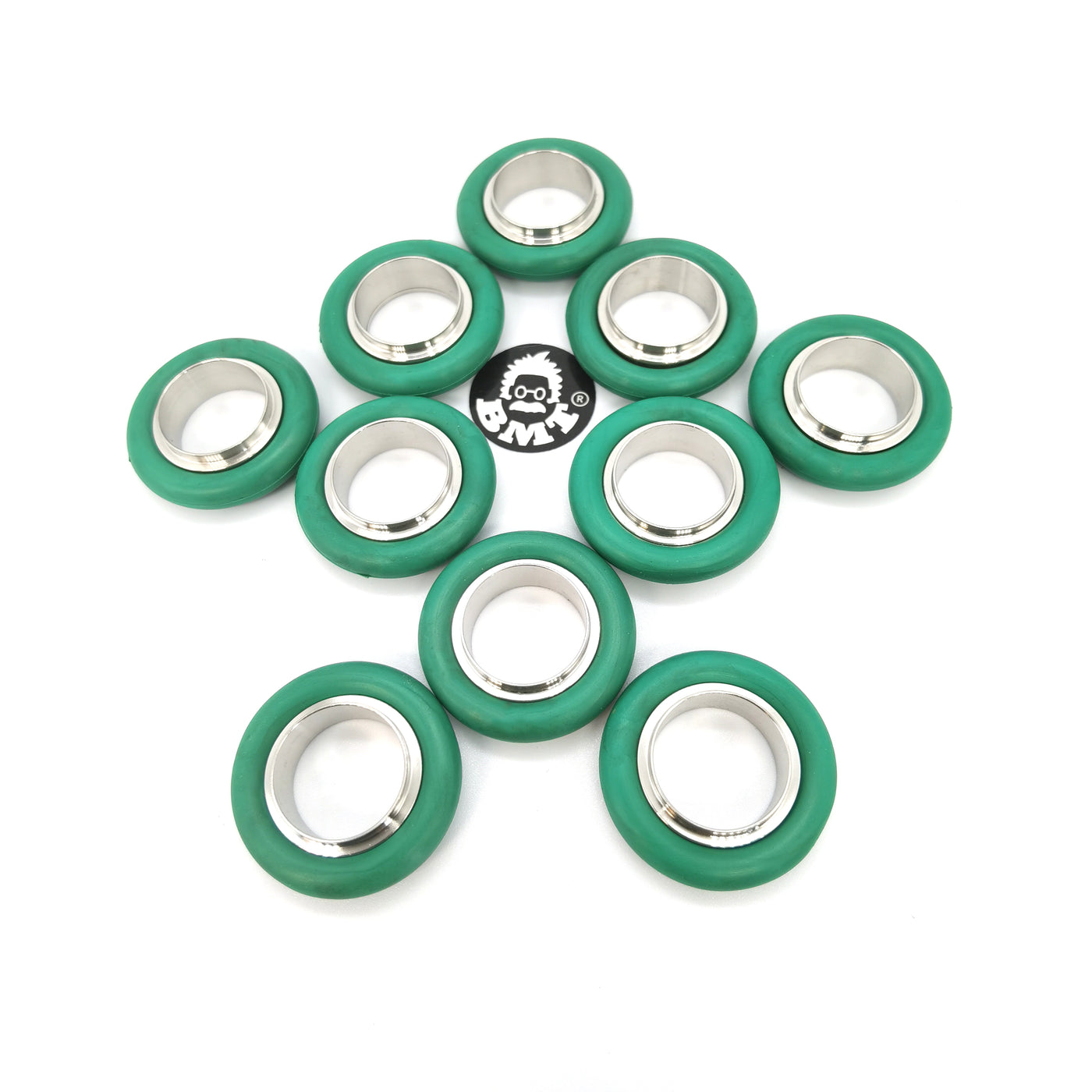

KF16 Stainless steel centering Ring & FKM O-ring, Pack of 10 pcs

Product Description
$16.50
Maximum quantity available reached.

  • Pack of 10 pcs
  • KF16 Centering ring, Made of Stainless steel 304
  • KF16 O-ring, Made of Viton or FKM
  • FKM or viton is good for wear chemical resistacne and higher working temperature
  • Working temp: -30F to 380 F

Centering Ring KF-16 Vacuum Fittings, ISO-KF Flange Size NW-16, Stainless Steel & Viton O-Ring

These KF-16 Centering Ring vacuum fittings follow ISO-KF standards and have a flange size of NW-16. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel with Viton O-Ring. Viton is well known for its excellent resistance to heat (400F/200C) and to aggressive fuels and chemicals. Viton is a registered trademark of DuPont Performance Elastomers.
Sku: VAC-SCR-KF16-FKM-10PK
